SNAPDRAGON N MPRM KR DALI WH 840 63 1200x220
Index: BLS0000001543
Industrial surface mounted luminary SNAPDRAGON is made out of steel plate which is white powder-lacquered (RAL 9016). Product is protected with a steel grid which is also powder-lacquered. SNAPDRAGON’s diffuser eliminates in rooms to a considerable degree the glare phenomenon, which makes SNAPDRAGON perfect for schools, universities, gyms or sports halls.
Mechanical data:
| Assembly | ceiling mounted |
|---|---|
| Material | steel sheet |
| Color | white |
| Diffuser | MPRM microprism |
| Impact resistant | IK10 |
| Weight [kg] | 5.65 |
| Dimensions | 1150 x 220 x 70 |
Electrical data:
| Light source | LED |
|---|---|
| Luminaire luminous flux [lm] | 6914 |
| Power of luminaire [W] | 48 |
| Luminaire's light efficiency [lm/W] | 144 |
| Color of the light [K] | 4000 |
| CRI | >80 |
| SDCM (LED sources) | 3 |
| Protection against electric shock | I |
| Protection degree | IP20 |
| Voltage | 220-240 V, 50-60 Hz |
| Lifetime of LED sources [h] | 150000 |
| Lx/By | L80/B50 |
| Operating temperature range [°C] | 5 ÷ 30 |
| Driver | DALI driver |

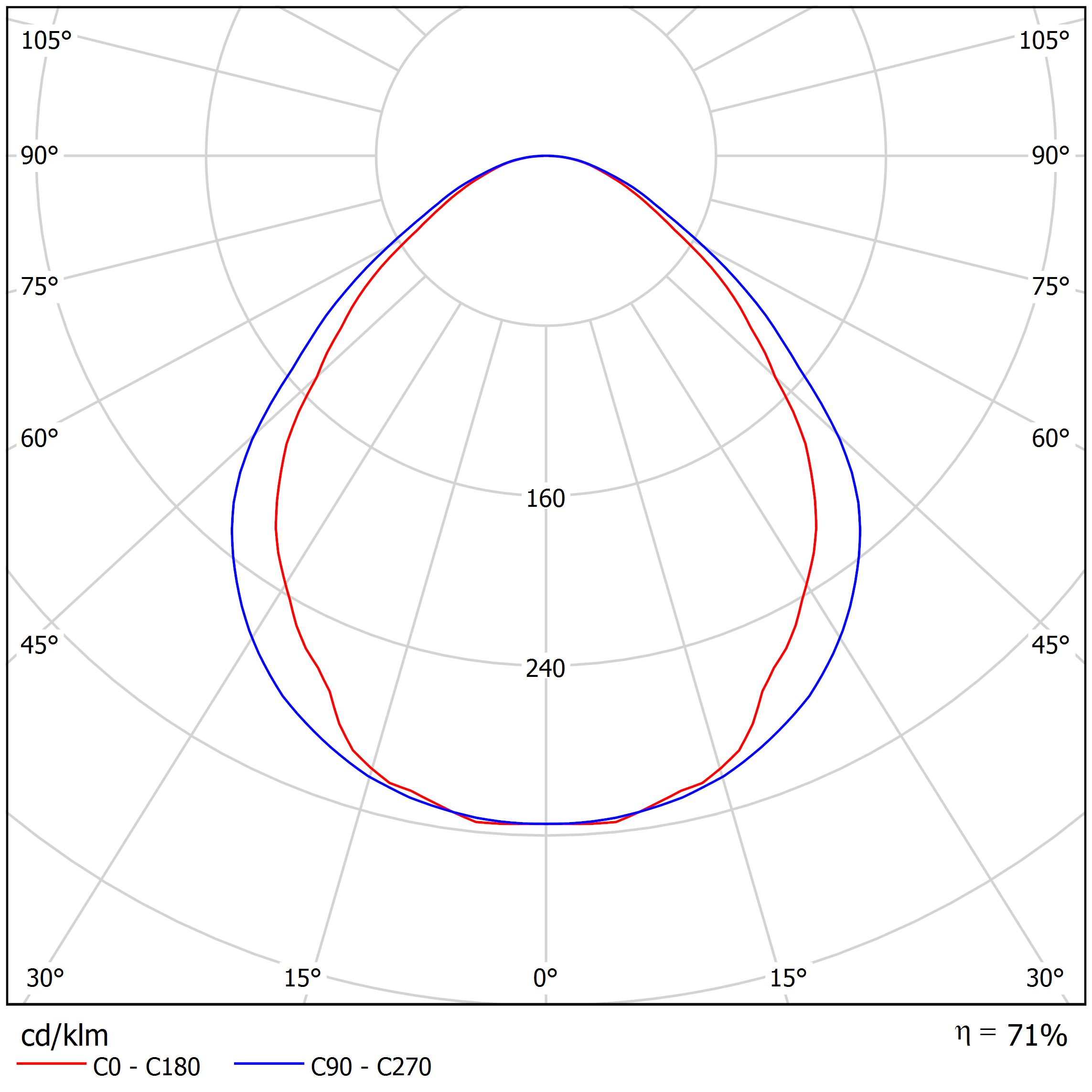

Light draft:
Technical drawings:
