ASTER CC N PC OPAL IP65 840 40 1200
Index: BLS0000004775
Industrial luminaries ASTER is a ceiling luminary. It features high ingress protection (IP65) and high protection against mechanical impact (IK08). ASTER luminary is well-adjusted to dusty rooms or those with elevated humidity. ASTER luminaries are intended for rooms, such as halls, magazines, warehouses, subways, underground parking lots etc. ASTER should be exploited in temperature between -20°C and +40°C.
Mechanical data:
| Assembly | ceiling mounted |
|---|---|
| Material | polycarbonate |
| Color | grey |
| Diffuser | PC opalized polycarbonate |
| Impact resistant | IK10 |
| Weight [kg] | 1.24 |
| Dimensions | 1140 x 60 x 58 |
Electrical data:
| Light source | LED |
|---|---|
| Luminaire luminous flux [lm] | 4066 |
| Power of luminaire [W] | 29 |
| Luminaire's light efficiency [lm/W] | 140 |
| Color of the light [K] | 4000 |
| CRI | >80 |
| SDCM (LED sources) | 4 |
| Beam angle [°] | 115 |
| Protection against electric shock | I |
| Protection degree | IP65 |
| Voltage | 220-240 V, 50-60 Hz |
| Lifetime of LED sources [h] | 70000 |
| Lx/By | L70/B50 |
| Operating temperature range [°C] | -20 - +40 |
| Driver | LED driver |

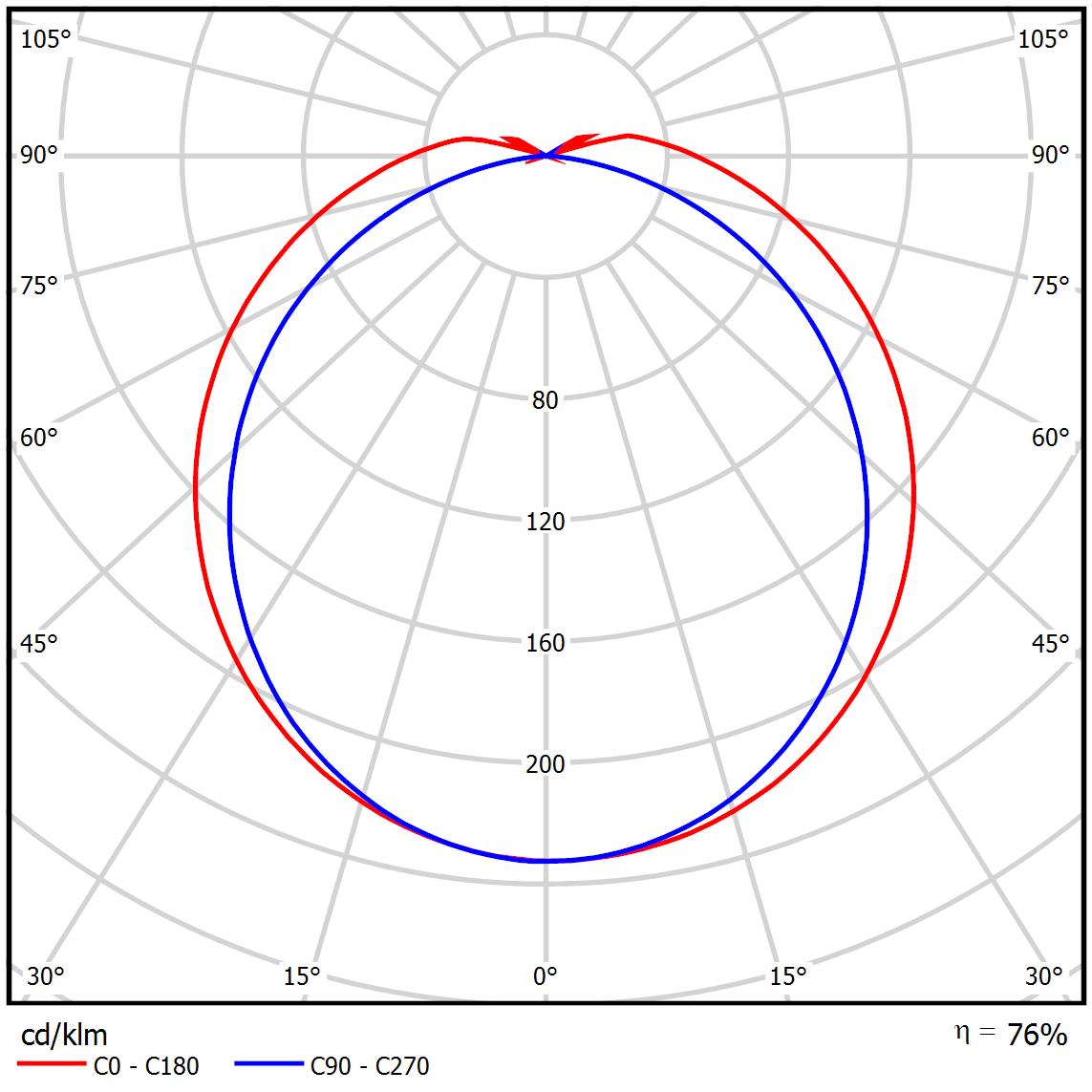

Light draft:

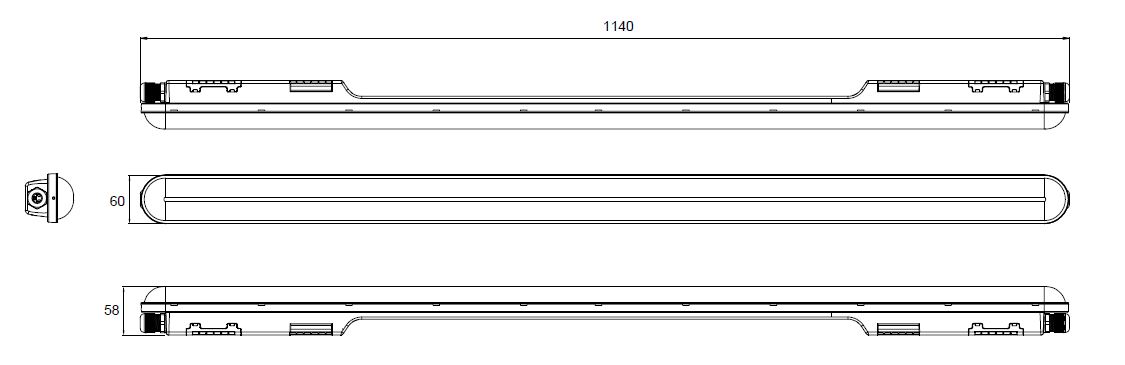

Technical drawings:
